New PCMCIA Version
Proximity card users can use just one card to protect their facility as well as identify their users.

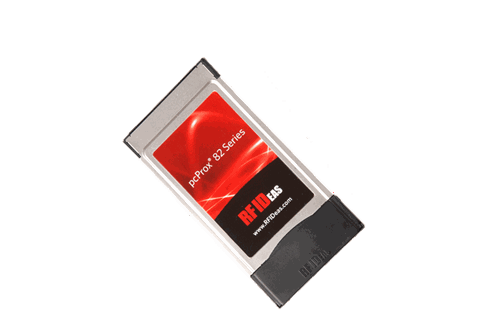

The pcProx PCMCIA reader allows end users to read all identification information into any application running under Windows 2000, XP, Vista oe Windows 7. Now organizations can allow employees to identify themselves with other independent software such as Excel, Access or any in-house created application.
The end user may selectively include/exclude any card information by configuring the reader. Additionally, the user may format the facility and ID codes, define separator characters, and append characters such as CR or TAB to the ID to further enhance using reader with a 3rd party applications.
Requires PCMCIA Slot and an operating system that supports PCMICA devices.
Please contact us if you have specific questions or to obtain current lead times.
Typical Maximum read range:
1.0” – 3.0” (2.5 – 7.6cm) dependent upon proximity/contactless card type and environmental conditions
Power supply and interface:
PCMCIA self-powered
Indicators:
Tri-state LED, beeper
Transmit frequency:
125 kHz
Operating temperature range:
-22° to 150°F (-30° to 65°C)
Operating humidity range:
5% to 95% relative humidity, non-condensing
Storage temperature range: -40° to 185°F (-40° to 85°C)
Interface: USB
Certifications:
FCC, United States; CE Mark Europe, C-tic Australia, RoHS
Warranty
Warranty: One year for material/workmanship defects; see complete policy for details.
